Cacti Template for HP Microserver Gen8

Configuration with upgrades:
  • HP Microserver Gen8 G1610T
  • 1x Intel Xeon E3-1240v2
  • 2x HDD WD40EFRX (4Tb, 64Mb cache, RAID 10 with using of HP Dynamic Smart Array B120i Controller)
  • 1x SSD Silicon Power V70 240 Gb
  • Windows Server 2008 R2
  • BIOS J06 08/24/2013
  • iLo 1.32 Nov 05 2013

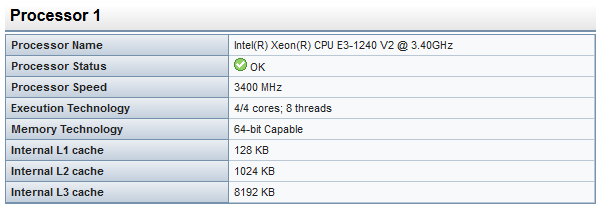

    Xeon E3-1240v2 has 4 cores with Hyper-threading. Max TDP is 69W. It has Thermal Monitoring Technologies.
    no power microcontroller

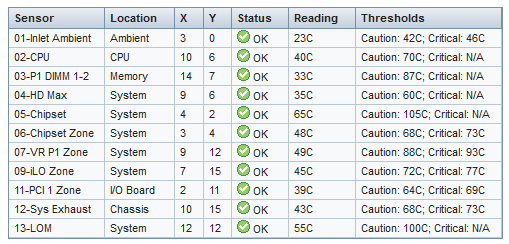

    HP Microserver Gen8 has 11 temperature sensors:
    no power microcontroller

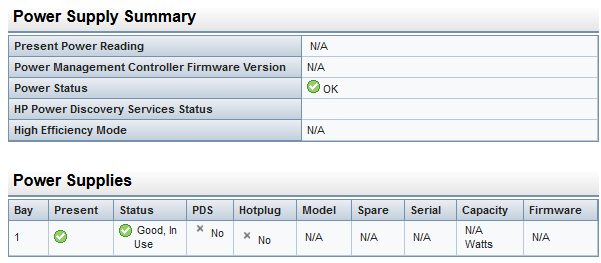

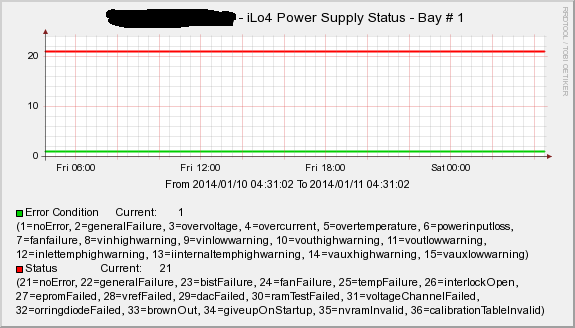

    HP Microserver Gen8 contains no power measurement microcontroller:
    no power microcontroller


    For power measurement I used APC Smart-UPS 1500VA. A graph below shows when a server was powered on/off and loaded by Prime95.
    Based on information below a server consumes 4% (idle) ... 10% (100% CPU load by Prime95 during 35-40 minutes), or about 42...105W.
    UPS load

    UPS input/output voltage during measurement
    UPS voltage

    UPS current
    UPS voltage

    UPS runtime
    UPS runtime

    The following pictures are drawn by Cacti template, which can be downloaded from this page.
    Fan and temperature sensors are marked as "Chassis # - Index # (type)". Index# is the same as shown on iLo page.

    HP Microserver Gen8 has only one system fan.
    fan 1

    Temperature sensors:

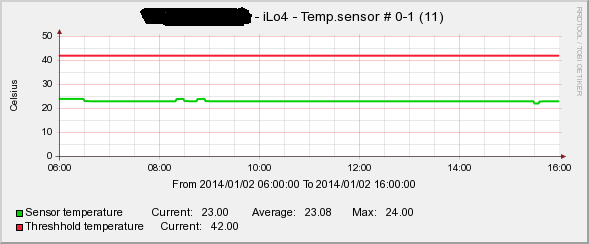

    Inlet Ambient (chassis 0, temp.sensor 1)
    temp 1

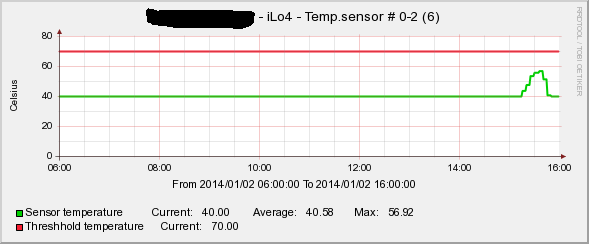

    CPU (chassis 0, temp.sensor 2)
    temp 2

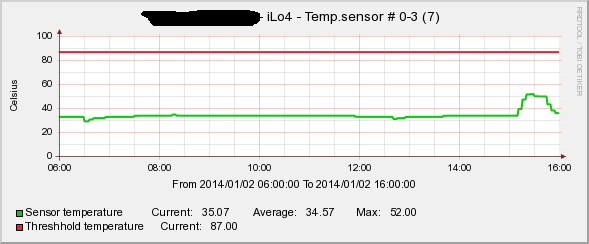

    P1 DIMM 1-2 (chassis 0, temp.sensor 3)
    temp 3

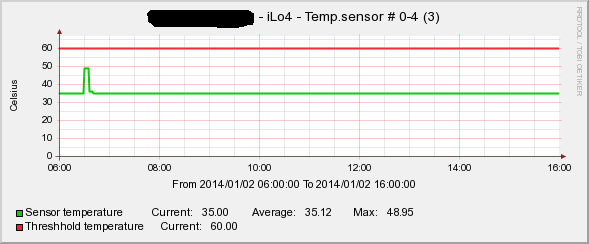

    HD Max, HDD maximum (chassis 0, temp.sensor 4)
    temp 4

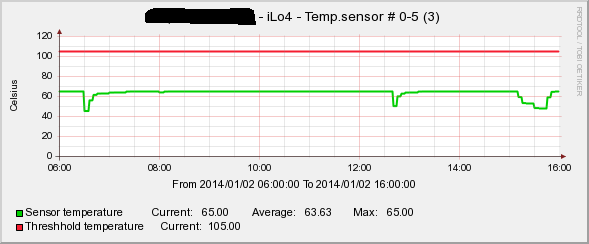

    Chipset, Intel C204 (chassis 0, temp.sensor 5)
    temp 5

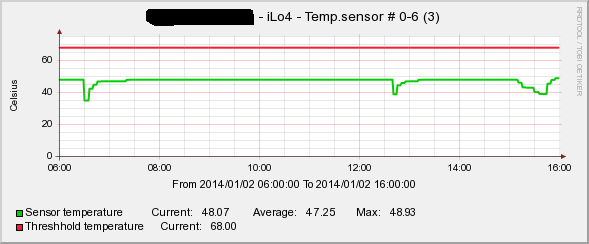

    Chipset Zone (chassis 0, temp.sensor 6)
    temp 6

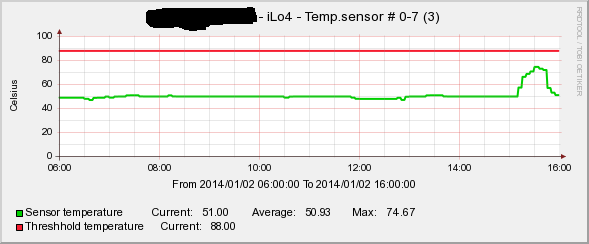

    VR P1 Zone (chassis 0, temp.sensor 7)
    temp 7

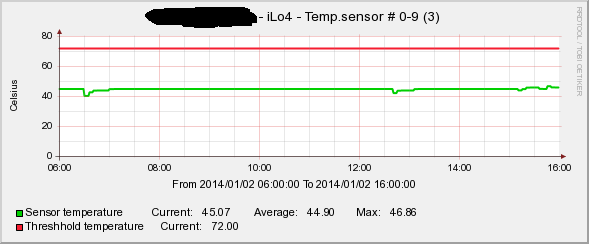

    iLo Zone (chassis 0, temp.sensor 9)
    temp 9

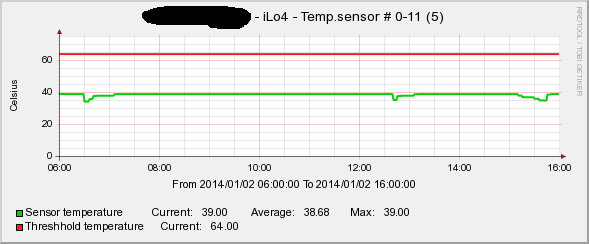

    PCI 1 Zone (chassis 0, temp.sensor 11)
    temp 11

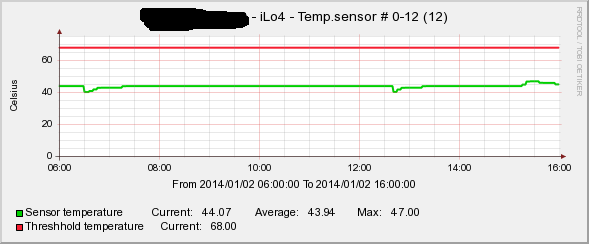

    System Exhaust (chassis 0, temp.sensor 12)
    temp 12

    LOM, LAN on motherboard (chassis 0, temp.sensor 13)
    temp 13


    Update on Jan 4, 2014:
  • some minor fixes;
  • cpu, drives, logical drives, ilo NIC are added.

    cpu

    drive

    drive temp

    logical drive

    iLo NIC

    iLo NIC


    Template configuration
  • need to use iLo4 IP address as host IP address
  • it is not required to have loaded OS to get SNMP data from iLo4
  • tested with Cacti 0.8.8b

    Download template for Cacti: here (iLo4 SNMP, XML)
    I guess it may work with many HP Gen8 servers with iLo4.
